Product Details:
Cross Laminated Self Adhesive Bituminous Membrane is a high-performance waterproofing membrane that is used in various construction applications. It is a multilayered membrane consisting of a cross-laminated film of high-density polyethylene (HDPE), bitumen, and a self-adhesive polymer layer. The cross-lamination provides superior dimensional stability, puncture resistance, and tear resistance, making it an ideal choice for waterproofing roofs, foundations, and other building structures.
This membrane is easy to install, as it has a self-adhesive layer that eliminates the need for hot bitumen or torch-on application. It is also resistant to UV radiation, temperature fluctuations, and aging, making it a durable and long-lasting solution for waterproofing applications.
The thickness of the membrane ranges from 1.5 mm to 4 mm, and it is available in various roll sizes. Additionally, it conforms to the international standards of ASTM and EN, ensuring its quality and reliability.
Applications:
Cross Laminated Self Adhesive Bituminous Membrane has various application areas such as:
-

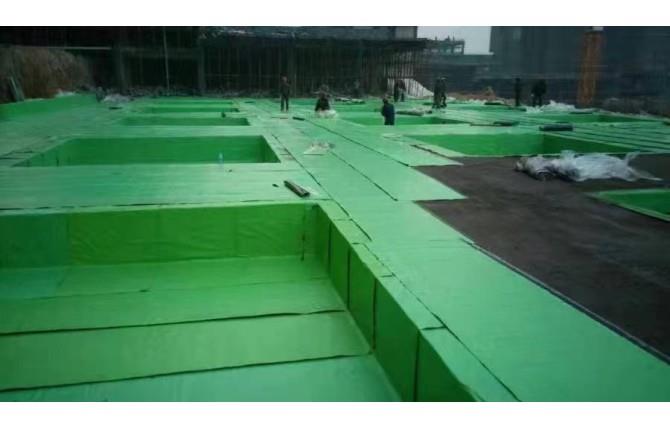

Waterproofing of roofs and foundations in buildings
-
Waterproofing of bridge decks and tunnels
-
Waterproofing of swimming pools and water tanks
-
Protection of insulation boards in roofing systems
-
Protection of concrete structures against water and chemicals.
Specification:
Here are the specifications for Cross Laminated Self Adhesive Bituminous Membrane:
-
Material: Bitumen and Cross Laminated Film
-
Thickness: 1.5 mm, 2.0 mm, 2.5 mm, 3.0 mm
-
Roll Length: 10 meters or customized
-
Reinforcement: Glass fiber mesh
-
Tensile Strength: > 800 N/50mm (MD), > 800 N/50mm (CMD)
-
Elongation at Break: > 40% (MD), > 40% (CMD)
-
Tear Strength: > 150 N (MD), > 150 N (CMD)
-
Peel Adhesion: > 2.0 N/mm
-
Water Vapor Transmission Rate: < 0.5 g/m²/24h
-
Resistance to Water Penetration: 0.3 MPa, 24 hours
